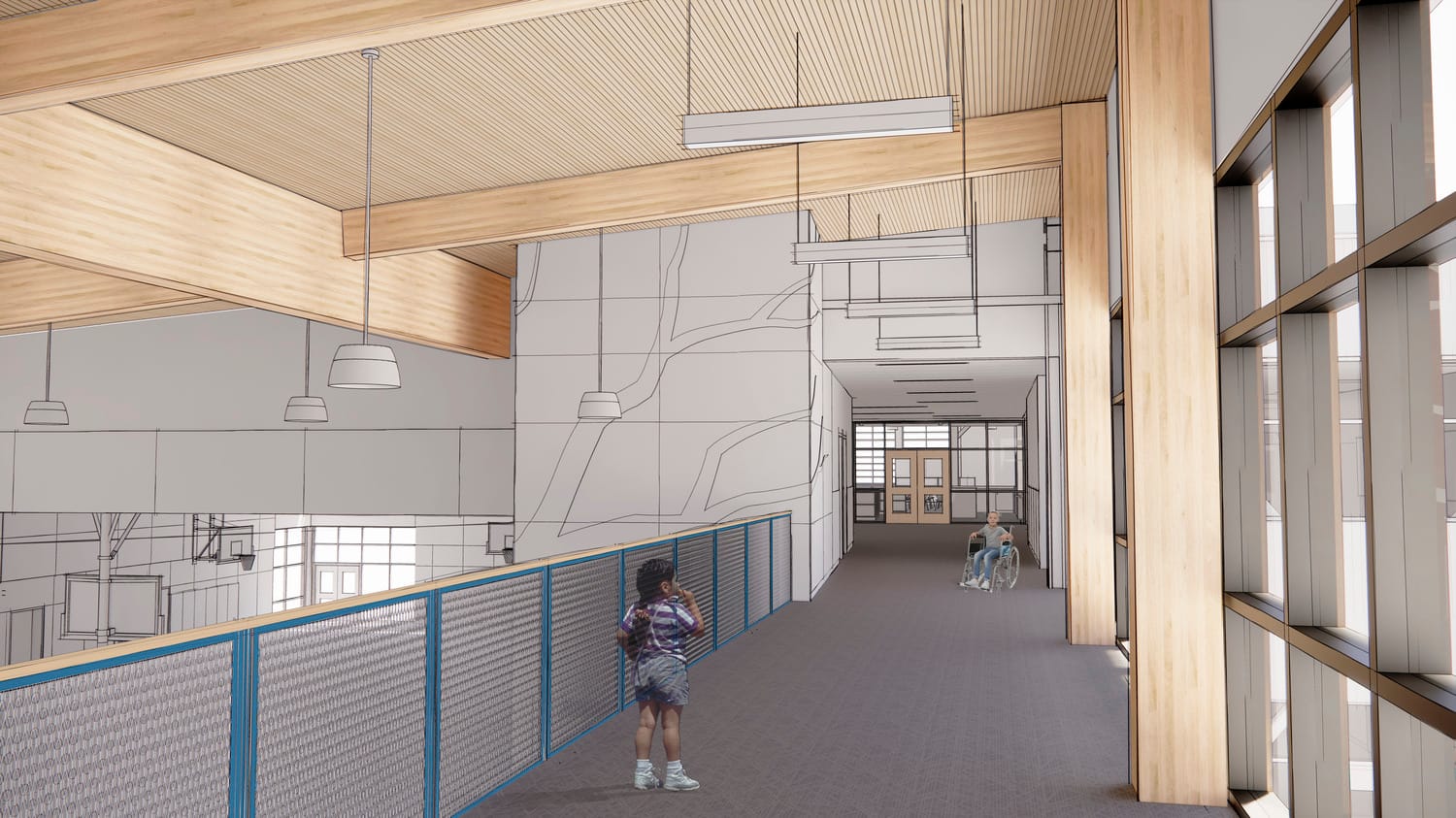

New Renton Elementary School No. 16, which bids in January 2022. Rendering courtesy of of Hutteball + Oremus Architecture.
BEYOND CODE COMPLIANCE
The right team will not only be able to think outside the box to create unique designs, but will guide the code-alternate process, working with everyone from the design team to stakeholders, district officials and city officials.

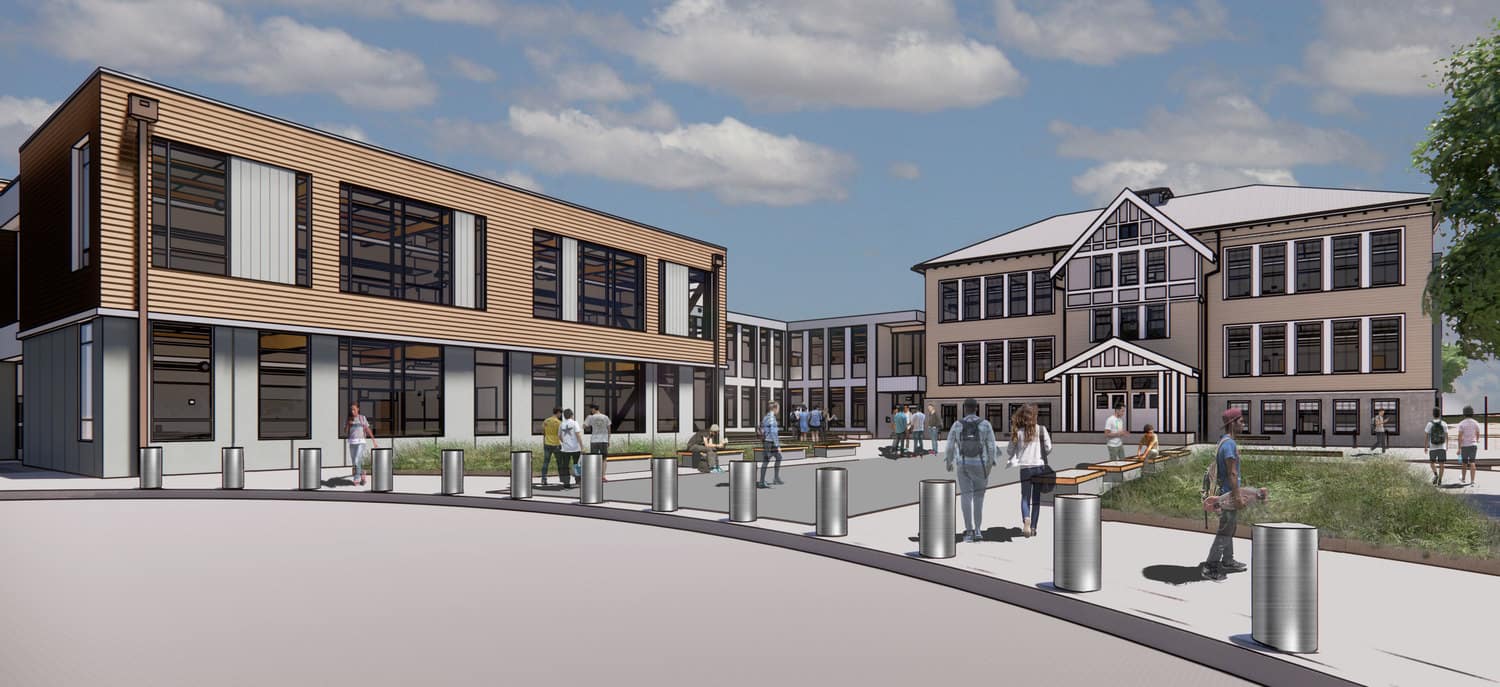

The Van Asselt School addition includes a new two-story building to house 26 classrooms and a gymnasium, supporting the school’s more than 1,000 students. Working in mass timber’s favor, the entire Van Asselt team was fully committed to using the material and complementing Seattle Public School District’s vision for a cleaner, sustainable future.
The groundwork for mass timber was laid, but the largest departure from code and standard practices was utilizing the floor and roof cross-laminated timber (CLT) as the seismic diaphragm. This unique system demanded proprietary connectors which are concealed and specifically engineered for mass timber projects. Through a pre-application meeting with the Seattle Department of Construction & Inspections, we permitted these systems and components successfully into the project.
At Renton Elementary School No. 16, we were breaking new ground. Our team took on the role of educators and mass timber advocates, gaining the trust of the jurisdiction and sharing presentations, success stories and data.
Establishing this collaborative relationship between city and design team made mass timber a possibility for the new school and we were able to ensure equivalency with the minimum standards of the building code.
UNDERSTAND THE MATERIAL
A true understanding of the material (and its manufacturers) makes all the difference. It’s a prerequisite to navigating the bid process, guiding the team, and ultimately, creating efficient (and on-budget!) mass timber designs.
The Van Asselt School addition is a success story and example of optimization. With the full team at the table from the very beginning, we were able to look at conceptual designs, timelines, framing options and building form, ultimately designing a mass timber structure that was not only beautiful, but highly efficient. A best-case scenario for mass timber design, the material (CLT panels and glulam beam spans) came first, and the building form followed.
Understanding the material is synonymous with understanding the manufacturer. In the case of mass timber, it’s important to know which panels are standard (meaning they can be bid to multiple manufacturers) and allow for competitive pricing. Exceptionally familiar with the local industry and CLT manufacturers, the team selected the right manufacturing partners and products for the project to be competitively and accurately bid.
Renton Elementary School No. 16’s design is full of dramatic roof slopes, complexities and changing levels, so we created options that supported the architectural vision and allowed mass timber to be integrated to the greatest extent possible. This meant thoughtfully selecting locations for exposed mass timber, remaining respectful of the budget and building complexities.
Acoustic dowel-laminated timber supported by glulam beams was chosen for large, busy spaces like the gym, commons and library. Classroom wings feature CLT and post-and-beam construction, achieving the warm, wood tones desired by the design team.
Additionally, instead of designing for a custom panel, costs were kept under control by selecting a “universal” panel size and working within its confines. Leveraging a network of trusted mass timber manufacturers yields competitive, accurate bids.
DESIGN FOR EFFICIENCY
Creating an efficient mass timber design means optimizing the material.
Van Asselt Elementary School finds ultimate efficiency in the floor plan. The building form, influenced by the panels, was designed with the material top-of-mind. This is how we always hope mass timber designs will take shape!
One of the top reasons mass timber regularly gets dropped is because of price. The school’s structural designs leverage Coughlin Porter Lundeen’s mass timber expertise, utilizing products at their full efficiency. The preselected universal products are used in strategic ways and panels are maximized at full spans, resulting in less overall materials, customizations and cost.
In contrast, the final design of Renton Elementary School No. 16 proves that teams can achieve an efficient mass timber system in a building that wasn’t necessarily designed for mass timber and panel efficiency. Since the program was resolved and the layout was approved before Coughlin Porter Lundeen joined the team, we had to be creative in our engineering and carefully evaluate if mass timber could fit into the set budget and layout.
The structural floor system is an impressive project standout and exemplifies efficient structural design. The final layout ditches the normal positioning of columns and beams thanks to the classrooms’ unique framing layout. As a traditional layout with its corresponding seven-ply panels would have priced mass timber out of the project, the team opted for a plan that cut down the panel span and utilizes the more universal five-ply panel. These decks and their cantilevered panels resulted in a thinner floor system, reduced spans and economized use of CLT panels.
It’s an exciting time for mass timber. And an exciting time for us as its stewards. We look forward to seeing projects continue to leverage this material, witness the social and environmental impacts, and be a part of this new category of builds in the education sector and beyond.
